OpenGL Real-Time Rendering Demo

A real-time graphics scene developed in C++, OpenGL, and GLSL for my MSc Computer Graphics coursework at the University of Nottingham in late 2023.

The assessed requirements were comparatively modest, so I used the project as an opportunity to explore a broader range of real-time rendering techniques and combine them into a single interactive scene. The result includes custom model loading, mapped materials, dynamic lighting, shadow mapping, procedural terrain, framebuffer-based post-processing, and a screen-space volumetric-light effect.

This project was completed in late 2023 while I was still relatively new to both C++ and real-time graphics programming. I have preserved it substantially as submitted because it documents the breadth of OpenGL, GLSL, and rendering techniques I explored, but its C++ structure and implementation style are not representative of my current engineering standards.

Since completing this project, I have studied modern C++ much more rigorously and applied that work in Indus, a multithreaded C++23 CPU path tracer built around physically based rendering. Indus includes a modular renderer architecture, custom mathematical and geometric foundations, BSDF-based light transport, SAH BVH acceleration, progressive rendering, concurrent scheduling, and detailed runtime instrumentation. It is the best representation of my current C++ design and programming ability.

Demo

Gallery

At a glance

What I implemented

Real-time rendering pipeline

• OpenGL context creation and interactive window management using GLFW.
• OpenGL function loading through GLAD.
• GLSL shader loading, compilation, program linking, activation, and uniform updates.
• Vertex-array, vertex-buffer, element-buffer, framebuffer, and renderbuffer handling.
• Indexed mesh rendering and texture-backed material data.
• Camera movement and view/projection transformations.
• OpenGL debug-context output for API, shader, portability, performance, and undefined-behaviour messages.

Geometry and asset loading

• A custom parser for Wavefront OBJ geometry.
• Construction of indexed vertex and triangle data.
• Per-vertex positions, texture coordinates, normals, tangents, and bitangents.
• Tangent-space basis generation for normal-mapped surfaces.
• Separate scene geometry and procedurally generated terrain geometry.

Lighting and materials

• Directional-light and point-light shading.
• Blinn-Phong diffuse and specular response.
• Distance attenuation for point lights.
• Support for:
  • diffuse maps;
  • specular maps;
  • tangent-space normal maps;
  • ambient-occlusion maps;
  • roughness-driven shininess;
  • emissive maps.
• Dynamic interpolation of lighting and environmental properties across the day-night presentation.

Shadow mapping

• Rendering the scene from the light’s point of view into a depth framebuffer.
• Transformation of world-space fragments into light space.
• Slope-sensitive depth bias to reduce shadow acne.
• Percentage-closer filtering over neighbouring depth samples to soften shadow edges.
• A dedicated depth-map visualisation path used while developing and debugging the effect.

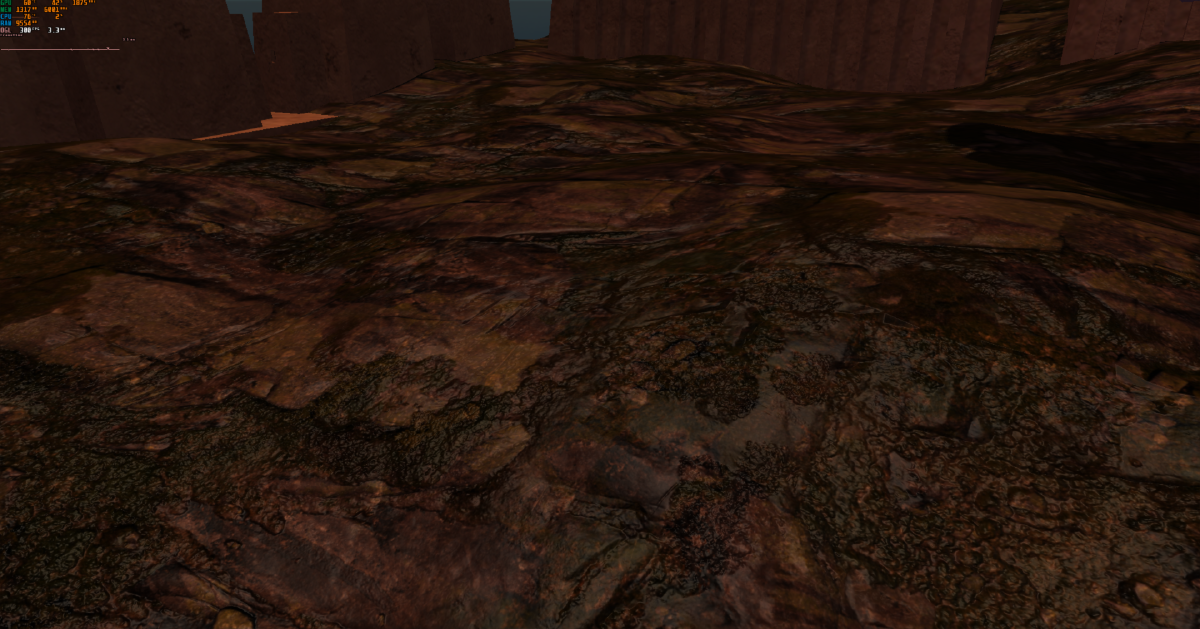

Procedural terrain

• Two-dimensional Perlin noise generated from a shuffled permutation table.
• Fractal Brownian motion using multiple noise octaves.
• Height-field mesh generation from the resulting noise values.
• Procedural triangle-index construction.
• Averaged vertex normals derived from terrain faces.
• Tangent and bitangent calculation for mapped terrain shading.

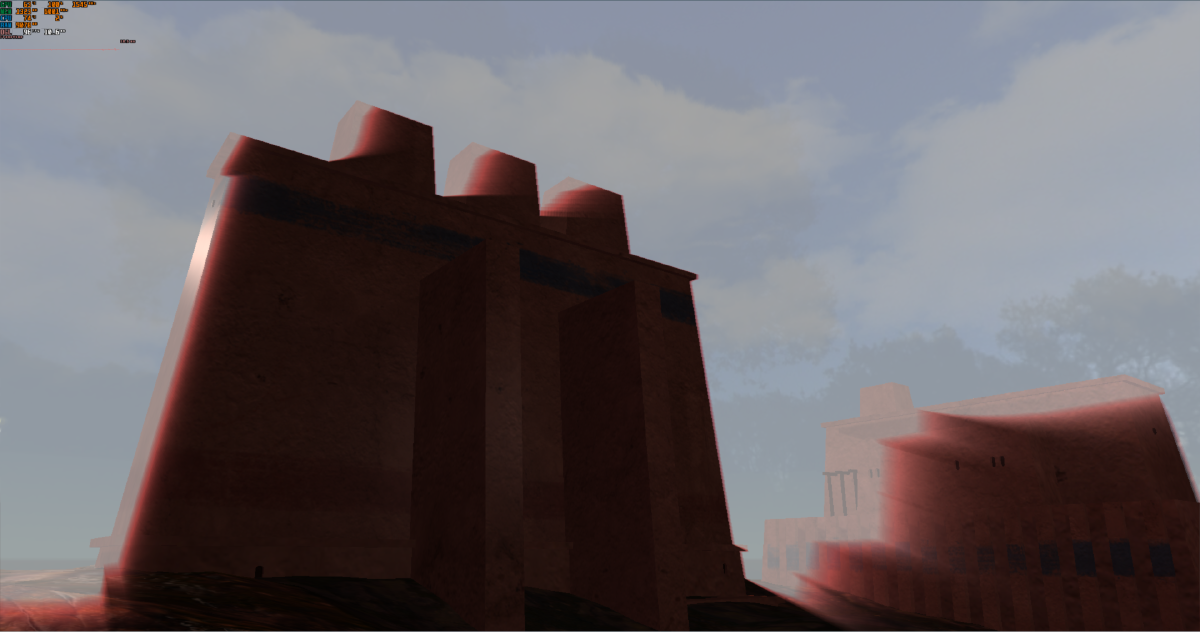

Framebuffers and post-processing

• Rendering the main scene into an off-screen framebuffer.
• Full-screen-quad processing of the rendered scene.
• Separate occlusion and effect buffers for screen-space light shafts.
• A radial screen-space sampling pass that accumulates illumination towards the projected light position.
• Final combination of the main scene and volumetric-light contribution.
• Experimental image-space processing and gamma-handling work.

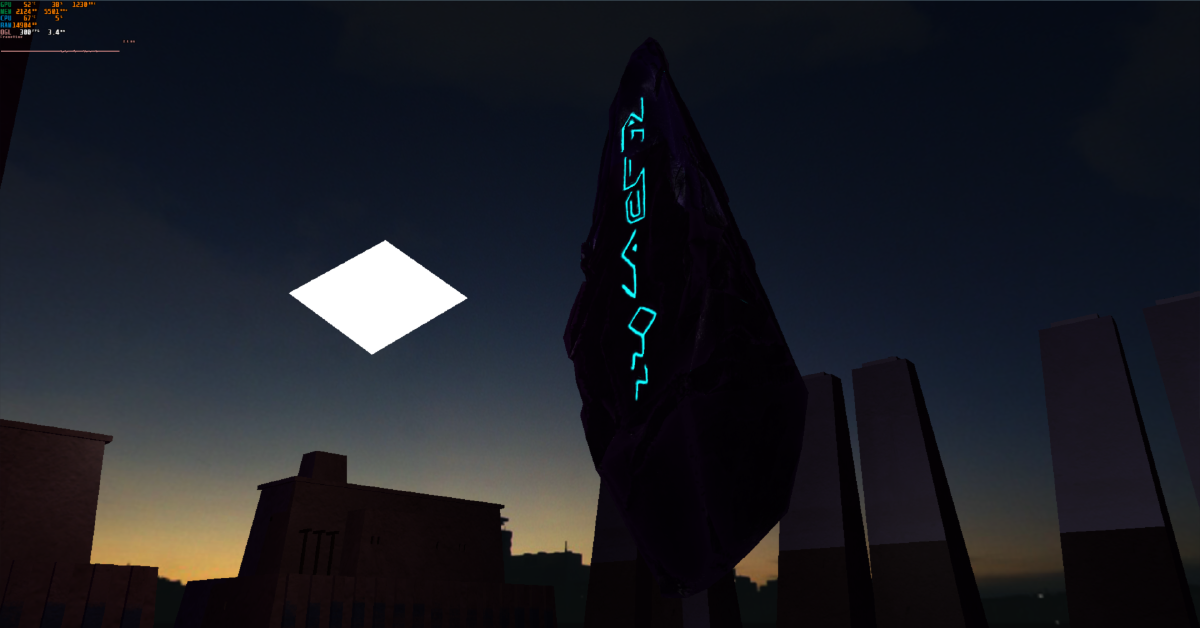

Environment and presentation

• Cubemap skybox rendering.
• A moving sun/light direction.
• Interpolated sky and lighting properties used to create a changing atmosphere.
• Animated scene elements and an explorable camera.
• Visual debugging helpers for light direction and intermediate rendering data.

Rendering flow

At a high level, each frame follows this structure:

 1Input and camera update
 2        |
 3        v
 4Update sun, lighting, and scene state
 5        |
 6        +--> Render light-space depth map
 7        |
 8        +--> Render main scene to off-screen framebuffer
 9        |
10        +--> Render occlusion information for light shafts
11        |
12        +--> Evaluate screen-space radial light effect
13        |
14        v
15Composite scene and post-process result
16        |
17        v
18Present final image

The project was primarily an exercise in understanding how the individual stages of a rasterisation renderer interact: CPU-side scene and resource management, GPU buffer state, coordinate-space transformations, shader inputs, depth rendering, material evaluation, and image-space composition.

Project structure

1src/
2  FinalProjectCW3.cpp       Main application, scene setup, and render loop
3  Headers/                  Camera, shader, model-loading, terrain, and utility code
4  openglObjects/            OpenGL resource-wrapper implementations
5  Shaders/                  GLSL vertex and fragment shaders
6  includes/                 Third-party headers and OpenGL support code
7
8dep/                        Models, textures, cubemaps, and other scene assets

Building

The project was developed on Windows using Visual Studio and includes a Visual Studio solution.

Requirements

• A GPU and driver supporting the requested OpenGL core-profile context.
• Visual Studio with C++ desktop-development support.
• GLFW.
• GLAD.
• GLM.

The repository contains the versions and local project configuration used during development.

Visual Studio

1. Clone or download the repository.
2. Open FinalProjectCW3.sln.
3. Select an x64 configuration.
4. Build the solution.
5. Run the executable with the repository as its working directory so that relative shader and asset paths resolve correctly.

The project has not been actively maintained or recently tested on a clean machine. Build configuration and asset paths may require adjustment on a different Visual Studio or dependency setup.

Project context

This project was my first substantial attempt to bring many real-time graphics concepts together in one program. It gave me practical experience with the rasterisation pipeline, GLSL, GPU resources, coordinate spaces, lighting, shadow maps, procedural geometry, and framebuffer effects.

I later moved towards physically based offline rendering in order to study light transport, sampling, numerical robustness, acceleration structures, and renderer architecture in greater depth. That work continues in Indus, a multithreaded CPU path tracer written in modern C++.

The two projects represent different stages of the same graphics-programming path:

• this repository records my early hands-on work with OpenGL, GLSL, and interactive rasterisation;
• Indus represents my current work in physically based rendering and modern C++ renderer design.

Status

This repository is archived and is not under active development.

It is retained as a record of the graphics techniques I explored for the coursework and as evidence of prior practical OpenGL and GLSL experience. It should not be interpreted as a production engine or as the current standard of my C++ code.
